Three-tank Ultrasonic Cleaning Machine | Integrated Industrial-grade Solution for Cleaning & Filtration + Rinsing + Drying
Solve Your Precision Cleaning Challenges with 3-in-1 Ultrasonic System
In industrial production, the cleanliness of precision components directly determines product quality and service life. Traditional multi-equipment step-by-step cleaning is not only inefficient, but also prone to secondary pollution due to process connection. Jietai Three-tank Ultrasonic Cleaning Machine (Cleaning & Filtration + Rinsing + Drying Series) reconstructs the cleaning process with an integrated design, integrating three core procedures into a single piece of equipment, providing you with a highly efficient, stable and precise industrial cleaning solution.
Core Process Analysis: Every Step is Designed for Ultimate Cleanliness
Cleaning & Filtration Tank: Deep Decontamination with Circulating Purification
Adopting adjustable ultrasonic frequency ranging from 28-130kHz, combined with a high-efficiency circulating filtration system (equipped with 5-20μm precision filter elements), it powerfully removes stubborn contaminants such as oil stains, iron filings and dust from component surfaces. Meanwhile, real-time filtration maintains the cleanliness of the cleaning fluid, preventing secondary pollution caused by contaminant reattachment. It is suitable for high-pollution load scenarios, such as degreasing of hardware parts, derusting of auto parts, and removal of welding slag from electronic components.
Rinsing Tank: Pure Water Compatible for Residue-free Purification
Supporting rinsing with pure water/deionized water, and equipped with a constant temperature control system (adjustable from room temperature to 80℃), it quickly removes residual cleaning fluid and trace impurities from component surfaces, ensuring no water marks or residues after cleaning, which meets the high-standard cleaning requirements of precision electronics, medical accessories and other fields. A dual-rinsing design is optional to further improve cleaning precision.
Drying Tank: Rapid Drying with High Efficiency and Energy Conservation
Adopting hot air circulation drying technology, both air velocity and temperature (adjustable from 40-120℃) can be precisely controlled. Combined with a sealed cavity design, it achieves rapid drying (drying time adjustable from 3-15 minutes), avoiding oxidation and rusting of components. Compared with traditional natural air drying, it improves efficiency by 80% while saving floor space and labor costs.
-
-
Product Tags:
|
|

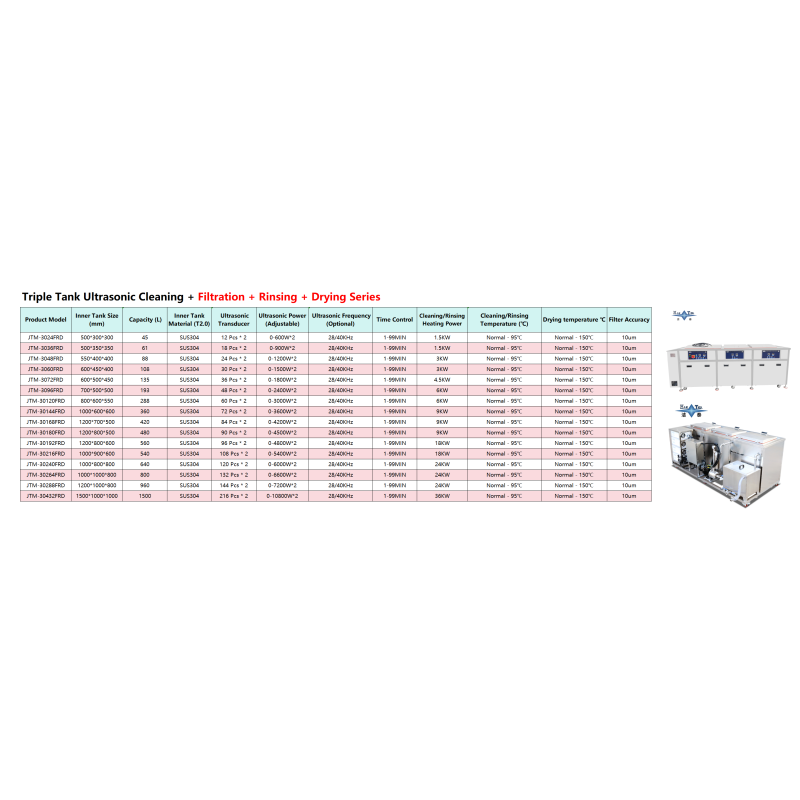

Three Tank Custom Industrial Precision Ultrasonic Cleaning Equipment With Circulating Filtration Constant Temperature Hot Air Drying Images
|
